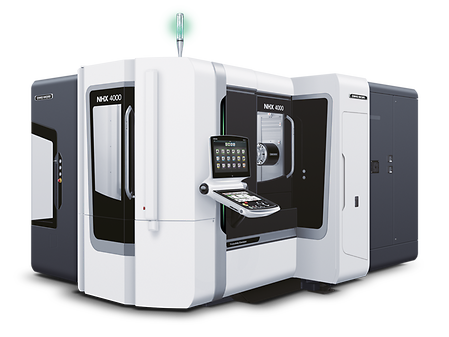

NHX 4000
Horizontal machining center with highest stability, precision and dynamics
Max. X-axis travel
560 mm
22 in.
Max. Y-axis travel
560 mm
22 in.
Max. Z-axis travel
660 mm
26 in.
Max. workpiece diameter
630 mm
24.8 in.
Max. workpiece height
900 mm
35.4 in.
Max. workpiece weight
400 kg
881.8 lbs.
Control & software alternatives
SIEMENS
MAPPS Fanuc
Highlights
NHX 4000 / NHX 5000 3rd Gen.
Dynamic
- Up to 2,362.2 ipm feed drive and up to 1.2 g acceleration.
- Powerful spindle as standard with 15,000 rpm
- Direct drive table available with 100 rpm
High rigidity
- Thick, high-rigidity bed.
- High rigidity bed due to stepped X-axis guideways.
- Large diameter spindle bearing of 2.8 in
Compact
- Compact horizontal machining center with a footprint of just 120.6 ft²
- Pallet size 15.7 x 15.7 in
- Quick and easy to set up thanks to its three-point support
Precise
- Direct scale feedback with 0.00025 µin resolution
Sample applications
Automation
Open up the possibilities of automation
Increase productivity and quality, and operate 24/7. Our solutions offer extended machine uptime and support sustainability. Optimize your processes with our innovative automation solutions!
NHX 4000 with RPS 21
CPP
The entry-level flexible pallet storage solution for up to 4 machines
- Handling of workpieces up to ø 2,000 x 1,600 mm, 3,000 kg
- Up to 11 pallets and max. four machines with two setup stations
- Operate via machine HMI or via the DMGMORI master computer HMI
- MCC-TMS tool management system
AMR 2000
Holistic automation on the shop floor
- Collaborative automation solution with free layout design
- Omnidirectional movement for minimal space requirements (turning radius 0m)
- Basis for additional tasks, e.g. B. tool handling, chip disposal, etc.
- Material transport from Euro pallets 1,200 x 800 mm
- Maximum transport weight of up to 2,000 kg
- Security based on Sick and Siemens technology
Highlights
AMR 2000 Material
- Autonomous transport of material pallets
- Transport of different load carriers
- Integration into DMG MORI automation systems for workpiece handling – exchange of finished part and raw part pallets
- Integration into existing processes
- Scalable and expandable at a later date
AMR 2000 chips
- Autonomous transport of chip containers
- Automatic transport order from the master computer
- Extended autonomy of the machine tool
- Material and chip transport can be combined
AMR 2000 tool handling
- Tool identification in the standard
- Autonomous transport and exchange of tools between machines and tool storage systems
- Max. tool dimensions ø 280 / 400 mm
- Max. tool weight 30 kg
- Transport weight 720 kg (24× 30 kg)
- Maximum number of tools: 24 pcs
Robo2Go Open
Highly flexible and collaborative automation for workpieces up to 10 kg
- Freely movable workpiece handling, incl. robot and storage area on a trolley
- Workpieces up to 10 kg, or 5 kg x 2 with double gripper
- No infrastructure changes
- No safety fence necessary
- 600 × 900 mm footprint
- Collaborative robots, setup time <5 minutes*
- Direct teaching without robot knowledge
- Easy connection via Ethernet
- Two types of workpiece stockers can be selected
- Storage for up to 64 workpieces
- Blow-off device
- Regrip station
*When the optional tag position correction function is selected and when the machine / workpiece setup is already completed.
MATRIS
Flexible modular robot system for ≥ 1 machine
- Modular concept with standardized peripheral devices, e. g. washing, measuring or marking
- 80 % shorter setup time due to modular and standardized peripherals and robot programs
- Flexible adaptation to system changes including after installation
- Simple and easy operation via the MATRIS control system without programming
Highlights
Highlights - Workpiece Handling
- Handling of workpieces up to ø 200 × 200 mm, 1 × 20 kg or 2 × 10 kg
- Stacking magazine:
- 14, 20 and 26 pallets: ø 150 × 120 mm, max. 35 kg per pallet
- 10 and 20 pallets: ø 200 × 200 mm, max. 75 kg per pallet
- Loading of oversized tooling in case of vertical machining center
- Available for 13 series, e. g. NLX, NTX, NHX, DMU, NMV, eVo, etc.
Highlights - Pallet Handling
- Ideal for the flexible production of 50 to 200 workpieces / day
- Space-saving pallet handling for up to 40 pallets
- 400 × 400 mm pallet size
- 150 kg transfer weight (workpiece and pallet)
- Integration of secondary processes such as deburring or marking possible
- Available for the CMX 50 U, CMX 70 U, DMU 50, DMU 65 monoBLOCK, CMX 600 V, CMX 800 V, CMX 1100 V
CTS – Central Tool Storage (Rack type)
Flexible tool magazine for more than 4,000 tools*
- Flexible Storage Layout with Modular Rack 400 Tools*
- Highly Reliable Tool Transfer with Positional Correction by Vision Camera.
- Just In Time Tooling with Pallet transfer & Machining & Tool life simulation
- Reliable software solution with Automatic Back-up System
* #40 Taper
Highlights
CTS Rack type
- Transport up to 23 tools per hour
- Transport of 5 tools on Robot
- Tool Setup Station TSS - interface on CTS
RPS NHX
RPS 5 / 14 / 21 - Machine-integrated automation with minimum space requirement
- Unmanned shifts due to circular storage system with up to 21 pallets
- Handling of workpieces up to ø 800 × 1,000 mm, 700 kg max
- Space saving automation solution for one machining center with 400 or 500 mm square pallets
- Reduction of non-productive time due to loading and unloading during production
- Easy operation via machine control with intuitive, integrated Pallet Manager software
WH-AMR
Workpiece automation with maximum flexibility thanks to flexible layout design
- Modular concept with flexible layout design
- Driverless transport systems without guide rails or tracks
- Collaborative: human and machine in one system
- Vision sensor enables robot arm positioning accuracy better than ± 1 mm
- Workpieces up to ø 150 × 120 mm and 10 kg
- Compact design (700 × 1,035 mm)
- Laser sensor
- Excellent operational performance and stability, including on an uneven floor
CTS - Central Tool Storage (Wheel type)
Flexible tool magazine for more than 4,000 tools
- Modular concept with step-by-step extension possibility by 360 / 240 shapes (ISO 40 / 50 recording)
- Very small footprint with only 29 m2
- Integrated tool loading solution for portal tool shuttle or with AMR 2000 tools
- Highest transport capacity through the tool - shuttle
- Transfer of up to 8 tools simultaneously
- Proven wheel magazine technology with over 1,600 units sold
Highlights
AMR 2000 Tooling
- Autonomous transport of up to 24 tools between the CTS (central tool magazine) and the machine
- Quick installation of the automation system
- Integration into existing production possible
- Max. tool dimensions ø 280 / 650 mm
- Max. tool weight 30 kg
- transport weight 720 kg (24 × 30 kg)
Portal tool handling
- Portal tool handling for highest efficiency, transport of up to 80 tools per hour.
- Transport of 16 tools (2×8 units)
- Fast tool change by means of rotating unit
- Max. linear speed: 80 m/min
- Tool Loading Station TLS - interface on machine and CTS
Tool transfer
- To change tools between the shuttle and the machine or on the CTS, the TLS moves upwards in each case.
LPP
Linear pallet storage solution for up to 8 machines and 99 pallets
- Handling of workpieces up to ø 3,400 x 2,000 mm, 10,000 kg
- Very flexible pallet pool system with up to 8 machines, 99 pallets and 5 setup stations
- Handling of up to three different pallet sizes possible in one system (2 sizes for machine pallets and one size for material pallets)
- Control directly via DMG MORI master computer software LPS
- Integration into customer network / workflow possible
- Monitoring and management tools for all relevant areas (planning, workpieces, clamping, tools, etc.)
- Tool management system MCC-TMS
Control & software
Experience the speed of digital transformation (DX)
Revolutionize your operations, unlock new opportunities, drive efficiency and sustainability by reducing power consumption – while gaining a powerful competitive advantage.
CELOS
Integrated digitization of the DMG MORI machines & the shop floor:
- CELOS Machine: APP-based user interface with access to all production-related information
- CELOS Manufacturing: 27 CELOS APPs for the optimal preparation & processing of orders
- Digital Factory: Continuous digital workflows from planning to production & service
MAPPS V on FANUC
- DMG MORI specific user interface
- Extensive machining cycles
- Flexible display through 6-window display and arrangement in window sets
- 3D collision control and machining simulation
- Extensive machining cycles
- Tool Management System
SIEMENS SINUMERIK 840d solutionline Operate
- Shopmill Workshop-orientated programming
- Advanced Surface and Top Surface: best workpiece surfaces with minimum processing time
- Extensive machining cycles
MAPPS V on MITSUBISHI
- DMG MORI specific user interface
- Extensive machining cycles
- Flexible display through 6-window display and arrangement in window sets
- 3D collision control and machining simulation
- Extensive machining cycles
- Tool Management System
Easy Tool Monitor 2.0
- Prevention of damage due to tool breakage or tool overload
- Sensorless with automated learning of load limits
- For turning, milling and drilling (up to 3 mm diameter)
- NEW: User interface on CELOS SideScreen
- NEW: Powerful algorithm for efficient monitoring after the first workpiece
Highlights
Customer Benefits
- Protection Package: Perfect supplement to MPC Lathes. Price advantage (approx. 40%)
- Save the monitoring limits for each tool and every cutting edge in the program
Left : LIVE status display in CELOS Sidescreen; current, set process values. / Right : Easy operation of the monitoring parameters in the tool table.
Multitool
- Efficient use of multi-tip turning tools with more than one cutting edge on turn & mill
- Several "sister tools" on one main tool holder
Highlights
Customer Benefits
- Reduction of tool change times
- Saves tool magazine space
MPC 2.0 – Machine Protection Control
- Vibration monitoring in the process
- Rapid shutdown in case of a crash
- Manual retraction even in swiveled machining plane
- NEW: Torque monitoring
- New: Recommended with Protection Package for CTX TC machines
Highlights
Customer Benefits
MPC Graph: aktuelle und angelernte Prozesswerte. / MPC Diagnostics: Lagerzustand, Anzahl von Stoß und Crash.
- Avoiding tool breakage
- Increase in machine availability
- Damage reduction
Efficient Production Package
- Solutions for a safe process and for the efficient use of important machining steps
- Applications: cone cleaning, tool data monitoring, safe withdrawal movement, tapping, deep hole drilling, external thread and spigot milling, internal thread and circular milling, reverse countersink cycle
- 12 stored machining strategies for stock removal, deep hole drilling, Pocket milling machines*
Highlights
Customer Benefits
- Runtime optimization according to individual application
- Safe retraction after program break
- Tool data monitoring
Left : Input mask for universal cycle pocket milling. / Right : Input mask for tapping cycle
MVC – Machine Vibration Control
- Vibration sensors in the milling spindle
- Various indicators to display the vibration status
- New machining proposal to reduce vibrations
- With the edit function, the new machining state is easily applied to your program
Highlights
Customer Benefits
- More productive cutting condition with less vibration
- Automatic suggestions for suitable process parameter
- The simple visualization serves as an orientation aid for machine operators
Left : Status display of the process vibrations in CELOS. / Right : Algorithms for the automatic recognition of regenerative vibrations.
Retraction Cycle
- By pushing the associated key the X- axis and the Y-axis travel to the positive end-positions for external machining
- Ideally suited to prepare the work space for set-up and alternatively also as an emergency rescue function.
Highlights
Customer Benefits
Functionality - Selection of the cycle by pressing the associated key on the operating panel
- Easy operation when setting up multi - channel machinery
- Possibilty of a fast response during external machining as a rescue function
Application Tuning Cycle
- Process-oriented adjustment of the feed rate n relation to the table loading
- Minimization of machining time with maximization of the component quality
- NEW: Now also available for CTX TC. Ideal machining result with the highest machine dynamics*
*without consideration of feed weight
Highlights
Customer Benefits
- User friendly setting of the machine dynamics with included DMG MORI knowhow
- Time saving in roughing
- High surface finish during finishing
Left : ATC 2.0 – Milling: Consideration of table loading. / Right : ATC – Turning: for CTX TC for easy adjustment of the machine dynamics.
AI Chip Removal
- Intelligent algorithms detect chip nests and control the moving rinsing nozzles during the machining
- Continuous optimization of the flushing strategy with a simple operation
Highlights
Customer Benefits
- Resource-saving due to the precise control of the rinsing nozzles
- Manual rinsing of the machine room by employees significantly minimized
- No machine downtime for machine room cleaning
Live view of the machine room in CELOS / Optimization of the cleaning movement with gesture control / Recording function of the camera simplifies the optimization process
Interpolation turning 2.0 – turning recessing cycle
- With interpolation turning, the tool cutter follows a circular movement, where the cutter is always oriented towards the center Of the circle.
- Possible for external and internal machining
- Synchronization and tool path controlled by the cycle
- NEW: in version 2.0 complex turning contours are possible (currently only available on the DMU 50, other machine types will follow)
Highlights
Customer benefits
- Easy manufacturing of sealing surfaces where milling operation might not be possible.
- Complete component processing in one clamping possible
- Reduced investment costs for tools
W-Setter
- Manual tool length measurement and workpiece centering in simple steps
- Guided instructions in the measurement. Short set-up times with high operational safety
Highlights
Customer Benefits
- Shorter set-up times
- No great experience necessary to take Measurements
Left : Structured user notes for the measurement results. / Right : Toolsetter mode – length / diameter and wear measurement.
Service & training
Comprehensive carefree service and training for your production
Take advantage of our full-service offering and hands-on training to maximize machine performance and minimize downtime. With comprehensive maintenance packages, original spare parts and customized training programs, we will take your production and your team to the next level.
Downloads & Technical Data
Workpiece
Max. workpiece diameter
630 mm
24.8 in.
Max. workpiece height
900 mm
35.4 in.
Max. workpiece weight
400 kg
881.8 lbs.
Clearance
Max. X-axis travel
560 mm
22 in.
Max. Y-axis travel
560 mm
22 in.
Max. Z-axis travel
660 mm
26 in.
