NRX 2000
Ideal for mass production of flange parts
Max. workpiece diameter
180 mm
7.1 in.
Max. workpiece length
100 mm
3.9 in.
Max. X-axis travel
100 mm
3.9 in.
Max. Z-axis travel
220 mm
8.7 in.
Control & software alternatives
MAPPS
Fanuc
Highlights
Space-saving design
- The smallest size in the class 501.5 ft3 including loader, workpiece stocker and rear left discharge type chip conveyor
- Machine width: 65.0 in without loader / Machine height: 82.7 in
- Low machine height allows loading into 20 ft dry containers
High rigidity
- Light and high-rigidity body is achieved by FEM analysis
High efficiency
- Running two machining processes at the same time with spindle 1 and spindle 2
- Functions of two machines concentrated as one integrated manufacturing system to realize high productivity in unmanned operation
- Automation with the loader of the world’s fastest class
Improved workability
- Machine structure with turrets at the front gives good accessibility to the chucks, turrets and transfer equipment, leading to excellent operating convenience
- Integral molded round chip chute improves the chip disposal capability
- DMG MORI operation system equipped with MAPPS - COMPACTline
- 12.1-inch multi-touch operation panel with outstanding functionality and stable operability

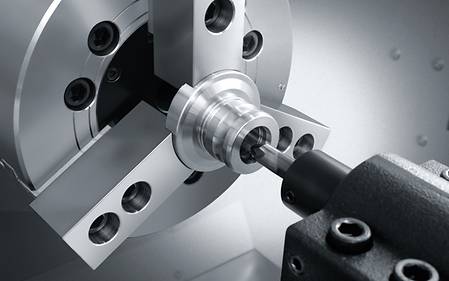

Sample applications
Automation
Standard automation and customized solutions in VERTICO design
Automation is a key element of digital production. Every DMG MORI machine can be upgraded with standard automation or with a customized automation solution for flexible manufacturing systems:
GX / GX T
GX 3 / 5 / 7 / 15 // GX 5 / 10 T - Modular gantry loader system for one or more machines
- Highly productive and flexible workpiece handling for one machine or linking several machines
- GX 10 T: Handling of workpieces up to ø 200 x 150 mm and and weighing up to 10 kg
- Combinable with various kinds of automatic peripheral equipment (washing, measuring, marking, etc.) and grippers of flexible design available
- Easy programming and setup due to integration into the machine control
- Load status monitoring available via DMG MORI Messenger
Highlights
NLX 2500 | 700 with GX 10 T
Highlights GX 3 / GX 5 / GX 7 / GX 15 / GX 5 T / GX 10 T / GX 15 T
- Handling of workpieces up to ø 200 mm, a length of 150 mm and a weight up to 10 kg
- Compact, space saving with built-in loader
- Combinable with various kinds of automatic peripheral equipment (washing, measuring, marking etc.) and grippers available by flexible design
- Easy programming and setup due to integration into the machine control
- Loader status monitoring available via DMG MORI Messenger
- Easily expandable for two or more machines
- Optional up to 100 kg handling weight available
AMR 2000
Holistic automation on the shop floor
- Collaborative automation solution with free layout design
- Omnidirectional movement for minimal space requirements (turning radius 0m)
- Basis for additional tasks, e.g. B. tool handling, chip disposal, etc.
- Material transport from Euro pallets 1,200 x 800 mm
- Maximum transport weight of up to 2,000 kg
- Security based on Sick and Siemens technology
Highlights
AMR 2000 Material
- Autonomous transport of material pallets
- Transport of different load carriers
- Integration into DMG MORI automation systems for workpiece handling – exchange of finished part and raw part pallets
- Integration into existing processes
- Scalable and expandable at a later date
AMR 2000 chips
- Autonomous transport of chip containers
- Automatic transport order from the master computer
- Extended autonomy of the machine tool
- Material and chip transport can be combined
AMR 2000 tool handling
- Tool identification in the standard
- Autonomous transport and exchange of tools between machines and tool storage systems
- Max. tool dimensions ø 280 / 400 mm
- Max. tool weight 30 kg
- Transport weight 720 kg (24× 30 kg)
- Maximum number of tools: 24 pcs
Control & software
Retraction Cycle
- By pushing the associated key the X- axis and the Y-axis travel to the positive end-positions for external machining
- Ideally suited to prepare the work space for set-up and alternatively also as an emergency rescue function.
Highlights
Customer Benefits
Functionality - Selection of the cycle by pressing the associated key on the operating panel
- Easy operation when setting up multi - channel machinery
- Possibilty of a fast response during external machining as a rescue function
Multitool
- Efficient use of multi-tip turning tools with more than one cutting edge on turn & mill
- Several "sister tools" on one main tool holder
Highlights
Customer Benefits
- Reduction of tool change times
- Saves tool magazine space
Easy Tool Monitor 2.0
- Prevention of damage due to tool breakage or tool overload
- Sensorless with automated learning of load limits
- For turning, milling and drilling (up to 3 mm diameter)
- NEW: User interface on CELOS SideScreen
- NEW: Powerful algorithm for efficient monitoring after the first workpiece
Highlights
Customer Benefits
- Protection Package: Perfect supplement to MPC Lathes. Price advantage (approx. 40%)
- Save the monitoring limits for each tool and every cutting edge in the program
Left : LIVE status display in CELOS Sidescreen; current, set process values. / Right : Easy operation of the monitoring parameters in the tool table.
Service & training
Downloads & Technical Data
Clearance
Max. X-axis travel
100 mm
3.9 in.
Max. Z-axis travel
220 mm
8.7 in.
Workpiece
Max. workpiece diameter
180 mm
7.1 in.
Max. workpiece length
100 mm
3.9 in.
