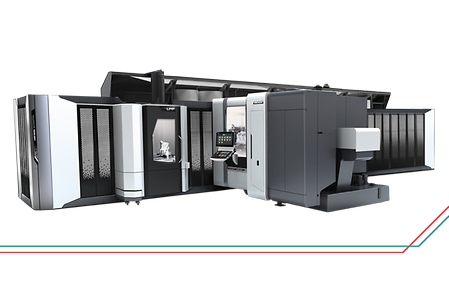

LPP
Advanced pallet storage solution for up to 8 machines and 99 pallets
- Handling of workpieces up to ø 3,400 x 2,000 mm, 10,000 kg
- Very flexible pallet pool system with up to 8 machines, 99 pallets and 5 setup stations
- Handling of up to three different pallet sizes possible in one system (2 sizes for machine pallets and one size for material pallets)
- Control directly via DMG MORI master computer software LPS
- Integration into customer network / workflow possible
- Monitoring and management tools for all relevant areas (planning, workpieces, clamping, tools, etc.)
- Tool management system MCC-TMS
Videos
Technical Data
Technical data
Workpiece
Pallet weight kg
Max. workpiece weight kg
Pallets
Pallet size mm
Max. number of pallets
(storage units)
(storage units)
Availabilities:
LPP 40: NHX/NHC 4000
LPP 50: NHX/NHC 5000, NHX/NHC 5500, DMC/DMU 65 H monoBLOCK
LPP 63: NHX/NHC 6300, DMC/DMU 85 H monoBLOCK, DMC/DMU 80 duoBLOCK, DMC/DMU 90 duoBLOCK
LPP 80: NHX/NHC 8000, DMC/DMU 100 duoBLOCK, DMC/DMU 125 duoBLOCK
LPP 100: NHX 10000, DMC/DMU 160 duoBLOCK
LPP 2000: DMU / C 65 H monoBLOCK, DMU / C 85 H monoBLOCK, DMU / C 80 P / U / FD duoBLOCK, DMU / C 90 P / U duoBLOCK, DMU / C 100 P / U / FD duoBLOCK, DMU / C 125 P / U / FD duoBLOCK
LPP 5000: DMC/DMU 160 monoBLOCK duoBLOCK
LPP 8000: DMC/DMU 210 U / FD
LPP 13000: DMC/DMU 270 U / FD
LPP 15000: DMC/DMU 340 U / FD
NHX 4000
Horizontal machining center with highest stability, precision and dynamics
Max. X-axis travel
22 in.
Max. Y-axis travel
22 in.
Max. Z-axis travel
26 in.
Max. workpiece diameter
24.8 in.
Max. workpiece height
35.4 in.
Max. workpiece weight
881.8 lbs.
Control & software alternatives
SIEMENS
MAPPS Fanuc
Highlights
NHX 4000 / NHX 5000 3rd Gen.
Dynamic
- Up to 2,362.2 ipm feed drive and up to 1.2 g acceleration.
- Powerful spindle as standard with 15,000 rpm
- Direct drive table available with 100 rpm
High rigidity
- Thick, high-rigidity bed.
- High rigidity bed due to stepped X-axis guideways.
- Large diameter spindle bearing of 2.8 in
Compact
- Compact horizontal machining center with a footprint of just 120.6 ft²
- Pallet size 15.7 x 15.7 in
- Quick and easy to set up thanks to its three-point support
Precise
- Direct scale feedback with 0.00025 µin resolution
NHX 5000
Horizontal machining center with highest stability, precision and dynamics
Max. X-axis travel
28.7 in.
Max. Y-axis travel
28.7 in.
Max. Z-axis travel
34.6 in.
Max. workpiece diameter
31.5 in.
Max. workpiece height
39.4 in.
Max. workpiece weight
1543.2 lbs.
Control & software alternatives
SIEMENS
MAPPS Fanuc
Highlights
NHX 4000 / NHX 5000 3rd Gen.
Dynamic
- Up to 2,362.2 ipm feed drive and up to 1 G acceleration
- Powerful spindle as standard with 15,000 rpm and 81.9/85.6 ft lb
- Direct drive table available with 100 rpm
High rigidity
- Thick, high-rigidity bed.
- High rigidity bed due to stepped X-axis guideways.
- Large diameter spindle bearing of 2.8 in
Compact
- Compact horizontal machining center with a footprint of just 158.2 ft²
- Pallet size 19.7 x 19.7 in
- Quick and easy to set up thanks to its three-point support
Precise
- Direct scale feedback with 0.00025 µin resolution
NHX 5500
Fusing a diverse range of functions with elegant design
Max. X-axis travel
31.5 in.
Max. Y-axis travel
31.5 in.
Max. Z-axis travel
34.6 in.
Max. workpiece diameter
31.5 in.
Max. workpiece height
43.3 in.
Max. workpiece weight
2204.6 lbs.
Control & software alternatives
SIEMENS
MAPPS Fanuc
Highlights
High speed
- Rapid traverse rate X-, Y- and Z-axes: 2,362.2 ipm
- Max. acceleration: X-, Y- and Z-axes: 0.73 / 0.80 / 0.93 G (23.6 / 25.6 / 29.9 ft/s2)
- Cutting feedrate X-, Y- and Z-axes: 2,362.2 ipm
High rigidity
- Thick, high-rigidity bed
- The 3-point support structure ensures a stable machine installation
- Machining with shorter tools
High-precision equipment
- High-resolution direct scale feedback
- Draw-back function for through spindle coolant
NHX 6300
Fusing a diverse range of functions with elegant design
Max. X-axis travel
41.3 in.
Max. Y-axis travel
35.4 in.
Max. Z-axis travel
40.6 in.
Max. workpiece diameter
41.3 in.
Max. workpiece height
51.2 in.
Max. workpiece weight
3306.9 lbs.
Control & software alternatives
SIEMENS
MAPPS Fanuc
Highlights
High speed
- Rapid traverse rate X-, Y- and Z-axes: 2,362.2 ipm
- Max. acceleration X-, Y- and Z-axes: 0.64 / 0.93 / 0.70 G (20.7 / 29.9 / 22.6 ft/s2)
- Cutting feedrate X-, Y- and Z-axes: 2,362.2 ipm
High rigidity
- Thick, high-rigidity bed
- The 3-point support structure ensures a stable machine installation
- Machining with shorter tools
High-precision equipment
- High-resolution direct scale feedback
- Draw-back function for through spindle coolant
NHX 8000
Absolute precision machining of large and difficult-to-cut materials
Max. X-axis travel
55.1 in.
Max. Y-axis travel
47.2 in.
Max. Z-axis travel
53.1 in.
Max. workpiece diameter
57.1 in.
Max. workpiece height
57.1 in.
Max. workpiece weight
4850.2 lbs.
Control & software alternatives
SIEMENS
MAPPS Fanuc
Highlights
NHX 8000 – 6-cylinder block machining
High precision
- Driven at the Center of Gravity
- Box-in-Box Construction
High speed
- Max. acceleration X-, Y- and Z-axes: 0.82 / 0.57 / 0.69 G (26.2 / 18.4 / 22.0 ft/s2)
- Rapid traverse rate X-, Y- and Z-axes: 1,968.5 ipm
- Cutting feedrate X-, Y- and Z-axes: 1,968.5 ipm
High cutting performance
- High-output spindle with a max. output of 53.3 HP
- Max. spindle torque: 965.5 ft・lbf <15%ED> (option)
NHX 10000
Expert on machining of large and difficult-to-cut workpieces
Max. X-axis travel
66.9 in.
Max. Y-axis travel
55.1 in.
Max. Z-axis travel
59.4 in.
Max. workpiece diameter
78.7 in.
Max. workpiece height
63 in.
Max. workpiece weight
6613.9 lbs.
Control & software alternatives
MAPPS Fanuc
Highlights
High precision
- Driven at the Center of Gravity
- Box-in-Box construction
High speed
- Max. acceleration X-, Y- and Z-axes: 0.62 / 0.51 / 0.45 G (20.0 / 16.4 / 14.4 ft/s2)
- Rapid traverse rate X-, Y- and Z-axes: 1,968.5 ipm
- Cutting feedrate X-, Y- and Z-axes: 1,968.5 ipm
Outstanding cutting performance
- Standard spindle with an output of up to 53.3 HP
- Max. spindle torque: 1,042.2 ft・lbf <10%ED> (option)
NH 4000 DCG
Presenting the ideal machining center
Max. X-axis travel
22 in.
Max. Y-axis travel
22 in.
Max. Z-axis travel
24.8 in.
Max. workpiece diameter
24.8 in.
Max. workpiece height
35.4 in.
Max. workpiece weight
881.8 lbs.
Control & software alternatives
MAPPS Fanuc
NH 5000 DCG
Achieving highest-level speed in the world
Max. X-axis travel
28.7 in.
Max. Y-axis travel
29.9 in.
Max. Z-axis travel
33.5 in.
Max. workpiece diameter
31.5 in.
Max. workpiece height
39.4 in.
Max. workpiece weight
1102.3 lbs.
Control & software alternatives
MAPPS Fanuc
NH 6300 DCGII
Horizontal machining center covering a wide range of requirements from heavy-duty cutting to high-speed cutting
Max. X-axis travel
41.3 in.
Max. Y-axis travel
35.4 in.
Max. Z-axis travel
38.6 in.
Max. workpiece diameter
41.3 in.
Max. workpiece height
51.2 in.
Max. workpiece weight
3306.9 lbs.
Control & software alternatives
MAPPS Fanuc
DMU 85 H (FD) monoBLOCK
Evolution in universal machining. Flexible, productive and process-safe.
Max. X-axis travel
33.5 in.
Max. Y-axis travel
45.3 in.
Max. Z-axis travel
35.4 in.
Max. workpiece diameter
40.9 in.
Max. workpiece height
34.3 in.
Max. workpiece weight
2204.6 lbs.
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights
Ergonomic
- Ingenious working area for machining clamping towers and 5-axis components on one machine
- Ergonomic cab for easy access to the work area and easy set-up of components
- Small footprint (188.4 ft²) for high area productivity and slim design (< 11.5 ft.) for easy linking
Precise
- One-piece, inherently rigid cast iron machine bed with 3-point support for maximum rigidity (also available with HSK-A100) and highest precision
- Thermosymmetrical design with extensive cooling measures for maximum long-term accuracy (up to 0.0002in.)
- Maximum process reliability through horizontal machining for ideal chip and heat dissipation
Versatile
- 5-axis capability for maximum flexibility thanks to swivel rotary table with bearings on both sides for components up to 2205 lbs.
- Ingenious working area for machining clamping towers and 5-axis components on one machine
- Mill-turn variant for complete machining with up to 800 rpm
- Extensive selection of flexible automation solutions thanks to standardized interface
Stiff monoBLOCK concept
- monoBLOCK – Maximum stability from one casting
- Also available with HSK-A100 tool holder for tools up to 11 in. diameter and 65.1 lbs.
- Highest availability due to reinforced mass production technology and optimum maintenance access
- Proven division of round and linear axes for easy to understand 5-axis kinematics.
- Clamping of the swivelling rotary table
DMU 65 H (FD) monoBLOCK
Evolution in universal machining. Flexible, productive and process-safe.
Max. X-axis travel
25.6 in.
Max. Y-axis travel
37.4 in.
Max. Z-axis travel
27.6 in.
Max. workpiece diameter
33.1 in.
Max. workpiece height
30.3 in.
Max. workpiece weight
1322.8 lbs.
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights
Ergonomic
- Ingenious working area for machining clamping towers and 5-axis components on one machine
- Ergonomic cab for easy access to the work area and easy set-up of components
- Small footprint (139.9 ft²) for high area productivity and slim design (102.4 in.) for easy linking
Precise
- One-piece, inherently rigid cast iron machine bed with 3-point support for maximum rigidity (also available with HSK-A100) and highest precision
- Thermosymmetrical design with extensive cooling measures for maximum long-term accuracy (up to 196.8 µin.)
- Maximum process reliability through horizontal machining for ideal chip and heat dissipation
Versatile
- 5-axis capability for maximum flexibility thanks to swivel rotary table with bearings on both sides for components up to 1,388.2 lbs.
- Ingenious working area for machining clamping towers and 5-axis components on one machine
- Mill-turn variant for complete machining with up to 1,200 rpm
- Extensive selection of flexible automation solutions thanks to standardized interface
Stiff monoBLOCK concept
- monoBLOCK – Maximum stability from one casting
- Also available with HSK-A100 tool holder for tools up to 11 in. diameter and 48.5 lbs.
- Highest availability due to reinforced mass production technology and optimum maintenance access
- Proven division of round and linear axes for easy to understand 5-axis kinematics.
- Clamping of the swivelling rotary table
DMC 65 H (FD) monoBLOCK
Evolution in universal machining. Flexible, productive and process-safe.
Max. X-axis travel
25.6 in.
Max. Y-axis travel
37.4 in.
Max. Z-axis travel
27.6 in.
Max. workpiece diameter
24.8 in.
Max. workpiece height
27.6 in.
Max. workpiece weight
1322.8 lbs.
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights
Ergonomic
- Ingenious working area for machining clamping towers and 5-axis components on one machine
- Ergonomic cab for easy access to the work area and easy set-up of components
- Fast double pallet changer for shortest non-productive times due to loading during machining
Precise
- One-piece, inherently rigid cast iron machine bed with 3-point support for maximum rigidity (also available with HSK-A100) and highest precision
- Thermosymmetrical design with extensive cooling measures for maximum long-term accuracy (up to 196.8 µin.)
- Maximum process reliability through horizontal machining for ideal chip and heat dissipation
Versatile
- 5-axis capability for maximum flexibility thanks to swivel rotary table with bearings on both sides for components up to 1,388.2 lbs.
- Ingenious working area for machining clamping towers and 5-axis components on one machine
- Mill-turn variant for complete machining with up to 1,200 rpm
- Extensive selection of flexible automation solutions thanks to standardized interface
Stiff monoBLOCK concept
- monoBLOCK – Maximum stability from one casting
- Also available with HSK-A100 tool holder for tools up to 11 in. diameter and 48.5 lbs.
- Highest availability due to reinforced mass production technology and optimum maintenance access
- Proven division of round and linear axes for easy to understand 5-axis kinematics.
- Clamping of the swivelling rotary table
DMC 85 H (FD) monoBLOCK
Evolution in universal machining. Flexible, productive and process-safe.
Max. X-axis travel
33.5 in.
Max. Y-axis travel
45.3 in.
Max. Z-axis travel
35.4 in.
Max. workpiece diameter
32.7 in.
Max. workpiece height
31.5 in.
Max. workpiece weight
1763.7 lbs.
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights
Ergonomic
- Ingenious working area for machining clamping towers and 5-axis components on one machine
- Ergonomic cab for easy access to the work area and easy set-up of components
- Fast double pallet changer for shortest non-productive times due to loading during machining
Precise
- One-piece, inherently rigid cast iron machine bed with 3-point support for maximum rigidity (also available with HSK-A100) and highest precision
- Thermosymmetrical design with extensive cooling measures for maximum long-term accuracy (up to 0.0002in.)
- Maximum process reliability through horizontal machining for ideal chip and heat dissipation
Versatile
- 5-axis capability for maximum flexibility thanks to swivel rotary table with bearings on both sides for components up to 1,764 lbs.
- Ingenious working area for machining clamping towers and 5-axis components on one machine
- Mill-turn variant for complete machining with up to 800 rpm
- Extensive selection of flexible automation solutions thanks to standardized interface
Stiff monoBLOCK concept
- monoBLOCK – Maximum stability from one casting
- Also available with HSK-A100 tool holder for tools up to 11 in. diameter and 66.15 lbs.
- Highest availability due to reinforced mass production technology and optimum maintenance access
- Proven division of round and linear axes for easy to understand 5-axis kinematics.
- Clamping of the swivelling rotary table
DMU 80 P (FD) duoBLOCK
With the new duoBLOCK series, every component becomes a masterpiece.
Max. X-axis travel
31.5 in.
Max. Y-axis travel
41.3 in.
Max. Z-axis travel
33.5 in.
Max. workpiece diameter
37.4 in.
Max. workpiece height
57.1 in.
Max. workpiece weight
3968.3 lbs.
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights
Complete machining
- Milling and turning in one setup with the DirectDrive table and rotational speeds up to 800 rpm
- Best surface quality with technology integration grinding
Precision
- Maximum accuracy through completely water-cooled feed drive
- SGS: Spindle growth gensor for compensation of spindle increase
- Significantly improved temperature response
Performance
- Up to 50 % higher cutting power with the roughing package
- Also available in mill- /turn - version
- powerMASTER motorspindle with 737.6 ft lb and 103.3 hp
- 5X torqueMASTER with 958.8 ft lb and 49.6 hp
Efficiency
- Low space requirements, extremely compact wheel magazine with short tool replenishment time
- Optimal ease of maintenance and ideal ergonomics thanks to unrestricted accessibility
- High machine availability with 96 %
duoBLOCK series. Always precise!
- Maximum stiffness for the highest machining performance!
- Large YRT-Bearing diameter in the B- and C-Axis.
- Wide linear guides with 2.2 in for a high table load of 3,968 lbs.
- Internally cooled ball screws ø 2.0 / 2.0 / 2.0 in as standard
- FEM optimization of all components
DMU 90 P duoBLOCK
With the new duoBLOCK series, every component becomes a masterpiece.
Max. X-axis travel
35.4 in.
Max. Y-axis travel
41.3 in.
Max. Z-axis travel
33.5 in.
Max. workpiece diameter
39.4 in.
Max. workpiece height
57.1 in.
Max. workpiece weight
3968.3 lbs.
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights
Precision
- Maximum accuracy through completely water-cooled feed drive
- SGS: Spindle growth gensor for compensation of spindle increase
- Significantly improved temperature response
Performance
- Up to 50 % higher cutting power with the roughing package
- Strong motor spindle with 317.2 ft lb and 69.7 hp
- duoBLOCK construction with high rigidity for max. cutting capacity
Efficiency
- 5-axes simultaneous machining in top configuration at the best price
- Optimal ease of maintenance and ideal ergonomics thanks to unrestricted accessibility
- High machine availability with 96%
duoBLOCK series. Always precise!
- Maximum stiffness for the highest machining performance!
- Large YRT-Bearing diameter in the B- and C-Axis.
- Wide linear guides with 2.2 in for a high table load of 3,968 lb
- Internally cooled ball screws ø 2.0 / 2.0 / 2.0 in as standard
- FEM optimization of all components
DMU 100 P (FD) duoBLOCK
With the new duoBLOCK series, every component becomes a masterpiece.
Max. X-axis travel
39.4 in.
Max. Y-axis travel
49.2 in.
Max. Z-axis travel
39.4 in.
Max. workpiece diameter
43.3 in.
Max. workpiece height
63 in.
Max. workpiece weight
4850.2 lbs.
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights
Precision
- Maximum accuracy through completely water-cooled feed drive
- SGS: Spindle growth gensor for compensation of spindle increase
- Significantly improved temperature response
Performance
- Up to 50 % higher cutting power with the roughing package
- powerMASTER motorspindle with 737.6 ft lb and 103.3 hp
- 5X torqueMASTER with 1,328 ft lb and 69.7 hp
Efficiency
- Low space requirements, extremely compact wheel magazine with short tool replenishment time of max. 5.6 sec with 453 tool pockets
- Optimal ease of maintenance and ideal ergonomics thanks to unrestricted accessibility
- High machine availability with 96 %
DMU 125 P (FD) duoBLOCK
With the new duoBLOCK series, every component becomes a masterpiece.
Max. X-axis travel
49.2 in.
Max. Y-axis travel
49.2 in.
Max. Z-axis travel
39.4 in.
Max. workpiece diameter
49.2 in.
Max. workpiece height
63 in.
Max. workpiece weight
6172.9 lbs.
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights
Complete machining
- Milling and turning in one setup with the DirectDrive table and rotational speeds up to 500 rpm
- Best surface quality with technology integration grinding
Precision
- Maximum accuracy through completely water-cooled feed drive
- SGS: Spindle growth gensor for compensation of spindle increase
- Significantly improved temperature response
Performance
- Up to 50 % higher cutting power with the roughing package
- Also available in mill- /turn - version
- powerMASTER motorspindle with 737.6 ft lb and 103.3 hp
- 5X torqueMASTER with 1,327.6 ft lb and 69.7 hp
Efficiency
- Low space requirements, extremely compact wheel magazine with short tool replenishment time of max. 5.6 sec with 453 tool pockets
- Optimal ease of maintenance and ideal ergonomics thanks to unrestricted accessibility
- High machine availability with 96 %
DMU 160 P (FD) duoBLOCK
With the new duoBLOCK series, every component becomes a masterpiece.
Max. X-axis travel
63 in.
Max. Y-axis travel
63 in.
Max. Z-axis travel
43.3 in.
Max. workpiece diameter
63 in.
Max. workpiece height
69.9 in.
Max. workpiece weight
9920.8 lbs.
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights
Complete machining
- Milling and turning in one setup with the DirectDrive table and rotational speeds up to 400 rpm
- Best surface quality with technology integration grinding
Precision
- Maximum accuracy through completely water-cooled feed drive
- SGS: Spindle growth gensor for compensation of spindle increase
- Significantly improved temperature response
Performance
- Up to 50 % higher cutting power with the roughing package
- Also available in mill- /turn - version
- powerMASTER 1000 motorspindle with 737.6 ft lb and 103.3 hp
- 5X torqueMASTER with 1,327.6 ft lb and 69.7 hp
Efficiency
- Low space requirements, extremely compact wheel magazine with short tool replenishment time of max. 5.6 sec with 453 tool pockets
- Optimal ease of maintenance and ideal ergonomics thanks to unrestricted accessibility
- High machine availability with 96 %
DMC 90 U duoBLOCK
With the new duoBLOCK series, every component becomes a masterpiece.
Max. X-axis travel
35.4 in.
Max. Y-axis travel
41.3 in.
Max. Z-axis travel
33.5 in.
Max. workpiece diameter
35.4 in.
Max. workpiece height
57.1 in.
Max. workpiece weight
3086.5 lbs.
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights
Precision
- Maximum accuracy through completely water-cooled feed drive
- SGS: Spindle Growth Sensor for Compensation of spindle increase
- Significantly improved temperature response
Performance
- Fast, very compact rotating pallet changer for main time parallel setup as standard
Up to 50 % higher cutting power with the roughing package
Strong motorspindle with 317.2 ft./lbs. and 69.7 hp.
Efficiency
5 axes simultaneous machining in top configuration at the best price
Optimal ease of maintenance and ideal ergonomics thanks to unrestricted accessibility
High machine availability with 96 %
duoBLOCK series. Always precise!
- Maximum stiffness for the highest machining performance!
- Large YRT-Bearing diameter in the B- and C-Axis.
- Wide linear guides with 2.2 in. for a high table load of 3086.5 lbs.
- Internnally cooled ball screws ø 0.8 / 0.8 / 0.8 in. as Standard
- FEM optimisation of all components
DMC 80 U (FD) duoBLOCK
With the new duoBLOCK series, every component becomes a masterpiece.
Max. X-axis travel
31.5 in.
Max. Y-axis travel
41.3 in.
Max. Z-axis travel
33.5 in.
Max. workpiece diameter
35.4 in.
Max. workpiece height
57.1 in.
Max. workpiece weight
3086.5 lbs.
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights
Complete machining
- Milling and turning in one setup with the DirectDrive table and rotational speeds up to 800 rpm
- Best surface quality with technology integration grinding
Precision
- Maximum accuracy through completely water-cooled feed drive
- SGS: Spindle growth gensor for compensation of spindle increase
- Significantly improved temperature response
Performance
- Fast, very compact rotating pallet changer for main time parallel setup as standard
- Also available in mill- /turn - version
- powerMASTER motorspindle with 737.6 ft lb and 103.3 hp
- 5X torqueMASTER® with 958.8 ft lb and 49.6 hp
Efficiency
- Low space requirements, extremely compact wheel magazine with short tool replenishment time of max. 5.6 sec with 453 tool pockets
- Optimal ease of maintenance and ideal ergonomics thanks to unrestricted accessibility
- High machine availability with 95%
DMC 100 U (FD) duoBLOCK
With the new duoBLOCK series, every component becomes a masterpiece.
Max. X-axis travel
39.4 in.
Max. Y-axis travel
49.2 in.
Max. Z-axis travel
39.4 in.
Max. workpiece diameter
39.4 in.
Max. workpiece height
63 in.
Max. workpiece weight
4409.2 lbs.
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights
Precision
- Maximum accuracy through completely water-cooled feed drive
- SGS: Spindle growth gensor for compensation of spindle increase
- Significantly improved temperature response
Performance
- Up to 50 % higher cutting power with the roughing package
- Fast, very compact rotating pallet changer for main time parallel setup as standard
- powerMASTER motorspindle with 737.6 ft lb and 103.3 hp
- 5X torqueMASTER with 1,327.6 ft lb and 69.7 hp
Efficiency
- Low space requirements, extremely compact wheel magazine with short tool replenishment time of max. 5.6 sec with 453 tool pockets
- Optimal ease of maintenance and ideal ergonomics thanks to unrestricted high machine availability with 95 %
DMC 125 U (FD) duoBLOCK
With the new duoBLOCK series, every component becomes a masterpiece.
Max. X-axis travel
49.2 in.
Max. Y-axis travel
49.2 in.
Max. Z-axis travel
39.4 in.
Max. workpiece diameter
49.2 in.
Max. workpiece height
63 in.
Max. workpiece weight
4409.2 lbs.
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights
Complete machining
- Milling and turning in one setup with the DirectDrive table and rotational speeds up to 500 rpm
- Best surface quality with technology integration grinding
Precision
- Maximum accuracy through completely water-cooled feed drive
- SGS: Spindle growth gensor for compensation of spindle increase
- Significantly improved temperature response
Performance
- Fast, very compact rotating pallet changer for main time parallel setup as standard
- Also available in mill- /turn - version
- powerMASTER motorspindle with 737.6 ft lb and 103.3 hp
- 5X torqueMASTER with 1,327.6 ft lb and 69.7 hp
Efficiency
- Low space requirements, extremely compact wheel magazine with short tool replenishment time of max. 5.6 sec with 453 tool pockets
- Optimal ease of maintenance and ideal ergonomics thanks to unrestricted accessibility
- High machine availability with 95 %
DMC 160 U (FD) duoBLOCK
With the new duoBLOCK series, every component becomes a masterpiece.
Max. X-axis travel
63 in.
Max. Y-axis travel
63 in.
Max. Z-axis travel
43.3 in.
Max. workpiece diameter
63 in.
Max. workpiece height
53.1 in.
Max. workpiece weight
8818.5 lbs.
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights
Complete machining
- Milling and turning in one setup with the DirectDrive table and rotational speeds up to 400 rpm
- Best surface quality with technology integration grinding
Precision
- Maximum accuracy through completely water-cooled feed drive
- SGS: Spindle growth gensor for compensation of spindle increase
- Significantly improved temperature response
Performance
- Fast, very compact rotating pallet changer for main time parallel setup as standard
- Also available in mill- /turn - version
- powerMASTER motorspindle with 737.6 ft lb and 103.3 hp
- 5X torqueMASTER with 1,327.6 ft lb and 69.7 hp
Efficiency
- Low space requirements, extremely compact wheel magazine with short tool replenishment time of max. 5.6 sec with 453 tool pockets
- Optimal ease of maintenance and ideal ergonomics thanks to unrestricted accessibility
- High machine availability with 96 %
DMC 210 U (FD)
The portal series from DECKEL MAHO – more than 1,000 machines installed.
Max. X-axis travel
82.7 in.
Max. Y-axis travel
82.7 in.
Max. Z-axis travel
49.2 in.
Max. workpiece diameter
98.4 in.
Max. workpiece height
57.5 in.
Max. workpiece weight
13227.7 lbs.
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights
Complete machining
- Milling and turning in one setup with the DirectDrive table with a torque up to 5,015.4 ft lb
- Best surface quality with technology integration grinding
Precision
- Maximum accuracy through water-cooled feed drive
- Band filter unit with 980 l as standard
- Highest long-term accuracy due to cooled linear guideways and active spindle growth control.
Performance
- High dynamics with feed speed up to 2,362.2 ipm
- Also available in mill- /turn - version
- Pallet changer for main time parallel setup as standard
- Biggest spindle range in the market: powerMASTER motor spindle with up to 737.6 ft lb and torqueMASTER gear spindle with 1,327.6ft lb
Efficiency
- Lower energy consumption through intelligent needs-based power units.
- Gantry design with vertically moving cross beam with hydraulic weight compensation.
- Fast innovative wheel type magazine with up to 303 tools with minimized footprint.
DMC 270 U (FD)
The portal series from DECKEL MAHO – more than 1,000 machines installed.
Max. X-axis travel
106.3 in.
Max. Y-axis travel
106.3 in.
Max. Z-axis travel
63 in.
Max. workpiece diameter
133.9 in.
Max. workpiece height
63.8 in.
Max. workpiece weight
19841.6 lbs.
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights
Complete machining
- Milling and turning in one setup with the DirectDrive table with a torque up to 8,113.2 ft lb
- Best surface quality with technology integration grinding
Precision
- Maximum accuracy through water-cooled feed drive
- Band filter unit with 2,500 l as standard
- Highest long-term accuracy due to cooled linear guideways and active spindle growth control.
Performance
- High dynamics with feed speed up to 2,362.2 ipm
- Also available in mill- /turn - version
- Pallet changer for main time parallel setup as standard
- Biggest spindle range in the market: powerMASTER motor spindle with up to 737.6 ft lb and torqueMASTER gear spindle with 1,327.6 ft lb
Efficiency
- Lower energy consumption through intelligent needs-based power units.
- Gantry design with vertically moving cross beam with hydraulic weight compensation.
- Fast innovative wheel type magazine with up to 243 tools with minimized footprint.
DMC 340 U (FD)
The portal series from DECKEL MAHO – more than 1,000 machines installed.
Max. X-axis travel
133.9 in.
Max. Y-axis travel
133.9 in.
Max. Z-axis travel
78.7 in.
Max. workpiece diameter
133.9 in.
Max. workpiece height
77.2 in.
Max. workpiece weight
22046.2 lbs.
Control & software alternatives
SIEMENS
HEIDENHAIN
Highlights
Complete machining
- Milling and turning in one setup with the DirectDrive table with a torque up to 7,523.1 ft lb
- Best surface quality with technology integration grinding
Precision
- Maximum accuracy through water-cooled feed drive
- Band filter unit with 2,500 l as standard
- Highest long-term accuracy due to cooled linear guideways and active spindle growth control.
Performance
- High dynamics with feed speed up to 2,362.2 ipm
- Also available in mill- /turn - version
- Pallet changer for main time parallel setup as standard
- Biggest spindle range in the market: powerMASTER motor spindle with up to 737.6 ft lb and torqueMASTER gear spindle with 1,327.6 ft lb
Efficiency
- Lower energy consumption through intelligent needs-based power units.
- Gantry design with vertically moving cross beam with hydraulic weight compensation.
- Fast innovative wheel type magazine with up to 243 tools with minimized footprint.
INH 80
Precision, productivity and flexibility in compact body
Max. X-axis travel
55.1 in.
Max. Y-axis travel
53.1 in.
Max. Z-axis travel
53.1 in.
Max. workpiece diameter
59.1 in.
Max. workpiece height
51.2 in.
Max. workpiece weight
4409.2 lbs.
Control & software alternatives
MAPPS Fanuc
Highlights
Combining High rigidity & High speed for Productivity
- Highly rigid machine structure with twin ball screw & slanted column
- 3-points support
- Thorough cooling measures
powerMASTER Spindle for Oustanding Rigidity
- With a max. torque of 808 N・m as standard and 1,414 N・m as option
- Suitable for heavy-duty and high-speed machining
- High reliability with 3-year warranty
Unique Solutions against Chip, Coolant, Mist Troubles to Advance Process Integration & Automation
- For continuous unmanned operation over long periods
- zero-sludge COOLANT pro - Innovative Vertical Coolant Tank
- Hybrid cleaning method against chip accumulation
Enable mounting large workpiece for 5-axis table
- Workpiece size of ø 1,500 mm × 1,300 mm
- Pallet loading capacity 2,000 kg
INH 63
Precision, productivity and flexibility in compact body
Max. X-axis travel
41.3 in.
Max. Y-axis travel
43.3 in.
Max. Z-axis travel
41.3 in.
Max. workpiece diameter
42.1 in.
Max. workpiece height
39.4 in.
Max. workpiece weight
2204.6 lbs.
Control & software alternatives
MAPPS Fanuc
Highlights
Machine structure with twin ball screws for X, Y, Z and slanted column
Large working area
- X / Y / Z-axis travel: 1,050 / 1,100 / 1,050 mm, 630 × 630 mm pallet size
- Workpieces 5-axis up to ø 1,070 × 1,000 mm / 1,000 kg
(ø 1,070 × 1,300 mm / 1,500 kg for machining without A-axis functionality possible)
36 month warranty with unlimited spindle hours
- powerMASTER spindle with 12,000 rpm, 808 Nm and 85 kW (10 %) as standard. 549Nm (High-Speed) and 1,414Nm (High Torque) available as options.
Highly rigid & dynamic design
- Twin ball screws for X, Y, Z and slanted column
Universal pallet design: combination of NH 6300 DCG, NHX 6300 and INH 63 possible
LPP-pallet handling, high productivity pallet storage solution
- Up to 99 pallets
- Operated via machine HMI or via the DMG MORI master
- LPS 4 is equipped as standard
- MCC-TMS is equipped as option
Workpiece handling
- Robot system MATRIS. no programming required
zero-sludgeCOOLANT pro (standard)
- For low-maintenance operation over long periods of time
- Use of innovative large-capacity vertical coolant tank
- Perfect separation of floating
In-Machine Coolant (standard)
- Hybrid cleaning method to avoidchip accumulation
- Fixed outlets on ceiling, sides and spindle nose
- Controlled ceiling nozzles direct the coolant specifically to the areas,where chips can accumulate
- New: 2 frequency-controlled high-efficiency pumps with control valves for the high- and low-pressure range
