NVX 7000

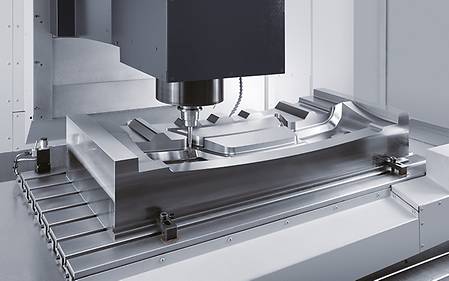

Vertical machining center with large axes travels, suitable for medium and large parts machining
Max. X-axis travel
1540 mm
60.6 in.
Max. Y-axis travel
760 mm
29.9 in.
Max. Z-axis travel
660 mm
26 in.
Max. workpiece height
600 mm
23.6 in.
Max. workpiece weight
2000 kg
4409.2 lbs.
Max. workpiece length
1700 mm
66.9 in.
Max. workpiece width
760 mm
29.9 in.
Control & software alternatives
MAPPS Fanuc
Highlights
Basic structure
- Improvement of vibration damping performance and dynamic rigidity
- A wide work envelope and high-speed machining, while maintaining high rigidity.
- Slideways are used for all axes
High precision
- Direct scale feedback
- Ball screw core cooling
- Power failure Z-axis drop prevention function
Improved workability
- Distance from table 12.8 in.
- Door opening width 67.9 in.
- Height of table top surface 39.4 in.
Control & software
Experience the speed of digital transformation (DX)
Revolutionize your operations, unlock new opportunities, drive efficiency and sustainability by reducing power consumption – while gaining a powerful competitive advantage.
5-axis simultaneous machining
- Free form surfaces by 5-axis interpolation on the main and counter spindle
- Turning and milling with interpolated B-axis
- Programming the 5-axis movements via customer CAD / CAM systems
- An intellegent Look-ahead function for a continuous process
Highlights
Customer Benefits
- High surface quality and transitions in combination with thermal compensation
- Machines calibrated to half tolerance
Left : Cycle activation. / Right : Online help on the controls.
MVC – Machine Vibration Control
- Vibration sensors in the milling spindle
- Various indicators to display the vibration status
- New machining proposal to reduce vibrations
- With the edit function, the new machining state is easily applied to your program
Highlights
Customer Benefits
- More productive cutting condition with less vibration
- Automatic suggestions for suitable process parameter
- The simple visualization serves as an orientation aid for machine operators
Left : Status display of the process vibrations in CELOS. / Right : Algorithms for the automatic recognition of regenerative vibrations.
Easy Tool Monitor 2.0
- Prevention of damage due to tool breakage or tool overload
- Sensorless with automated learning of load limits
- For turning, milling and drilling (up to 3 mm diameter)
- NEW: User interface on CELOS SideScreen
- NEW: Powerful algorithm for efficient monitoring after the first workpiece
Highlights
Customer Benefits
- Protection Package: Perfect supplement to MPC Lathes. Price advantage (approx. 40%)
- Save the monitoring limits for each tool and every cutting edge in the program
Left : LIVE status display in CELOS Sidescreen; current, set process values. / Right : Easy operation of the monitoring parameters in the tool table.
Retraction Cycle
- By pushing the associated key the X- axis and the Y-axis travel to the positive end-positions for external machining
- Ideally suited to prepare the work space for set-up and alternatively also as an emergency rescue function.
Highlights
Customer Benefits
Functionality - Selection of the cycle by pressing the associated key on the operating panel
- Easy operation when setting up multi - channel machinery
- Possibilty of a fast response during external machining as a rescue function
Multitool
- Efficient use of multi-tip turning tools with more than one cutting edge on turn & mill
- Several "sister tools" on one main tool holder
Highlights
Customer Benefits
- Reduction of tool change times
- Saves tool magazine space
MPC 2.0 – Machine Protection Control
- Vibration monitoring in the process
- Rapid shutdown in case of a crash
- Manual retraction even in swiveled machining plane
- NEW: Torque monitoring
- New: Recommended with Protection Package for CTX TC machines
Highlights
Customer Benefits
MPC Graph: aktuelle und angelernte Prozesswerte. / MPC Diagnostics: Lagerzustand, Anzahl von Stoß und Crash.
- Avoiding tool breakage
- Increase in machine availability
- Damage reduction
Interpolation turning 2.0 – turning recessing cycle
- With interpolation turning, the tool cutter follows a circular movement, where the cutter is always oriented towards the center Of the circle.
- Possible for external and internal machining
- Synchronization and tool path controlled by the cycle
- NEW: in version 2.0 complex turning contours are possible (currently only available on the DMU 50, other machine types will follow)
Highlights
Customer benefits
- Easy manufacturing of sealing surfaces where milling operation might not be possible.
- Complete component processing in one clamping possible
- Reduced investment costs for tools
DMG MORI gearMILL
- Productive complete processing
- Cost-effective gear cutting on standard machine with standard tools
- Flexible for different gear geometries
- Quality inspection in the process
Highlights
Customer Benefits
- Program creation based on blank drawings and gear data
- Optimization of workpiece orientation e.g. after heat treatment
- Interface for coordinate measuring device (Klingenberg, Leitz, Zeiss)
Left : Input of the gear parameters for the geometry calculation of a spur gear. / Right : Grafische Betrachtung des Abwälzverfahrens.
Application Tuning Cycle
- Process-oriented adjustment of the feed rate n relation to the table loading
- Minimization of machining time with maximization of the component quality
- NEW: Now also available for CTX TC. Ideal machining result with the highest machine dynamics*
*without consideration of feed weight
Highlights
Customer Benefits
- User friendly setting of the machine dynamics with included DMG MORI knowhow
- Time saving in roughing
- High surface finish during finishing
Left : ATC 2.0 – Milling: Consideration of table loading. / Right : ATC – Turning: for CTX TC for easy adjustment of the machine dynamics.
W-Setter
- Manual tool length measurement and workpiece centering in simple steps
- Guided instructions in the measurement. Short set-up times with high operational safety
Highlights
Customer Benefits
- Shorter set-up times
- No great experience necessary to take Measurements
Left : Structured user notes for the measurement results. / Right : Toolsetter mode – length / diameter and wear measurement.
Service & training
Comprehensive carefree service and training for your production
Take advantage of our full-service offering and hands-on training to maximize machine performance and minimize downtime. With comprehensive maintenance packages, original spare parts and customized training programs, we will take your production and your team to the next level.
Downloads & Technical Data
Workpiece
Max. workpiece length
1700 mm
66.9 in.
Max. workpiece width
760 mm
29.9 in.
Max. workpiece height
600 mm
23.6 in.
Max. workpiece weight
2000 kg
4409.2 lbs.
Clearance
Max. X-axis travel
1540 mm
60.6 in.
Max. Y-axis travel
760 mm
29.9 in.
Max. Z-axis travel
660 mm
26 in.
