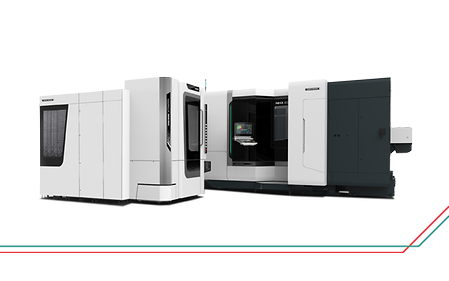

CPP
The entry-level flexible pallet storage solution for up to 4 machines
- Handling of workpieces up to ø 2,000 x 1,600 mm, 3,000 kg
- Up to 11 pallets and max. four machines with two setup stations
- Operate via machine HMI or via the DMGMORI master computer HMI
- MCC-TMS tool management system
Downloads
Downloads
Technical Data
Max. workpiece weight lb.
Max. workpiece size in.
Pallet size in.
(storage units + setup station)
882
ø 24.8 × 35.4
15.7 × 15.7
5 – 12
1543.5
ø 31.5 × 4.3
19.7 × 19.7
5 – 12
3307.5
ø 41.3 × 51.2
24.8 × 24.8
5 – 12
4851
ø 57.1 × 57.1
31.5 × 31.5
5 – 12
6615
ø 78.7 × 63.0
39.4 × 39.4
6
INH 63
INH 80
NHX 4000
NHX 5000
NHX 5500
NHX 6300
NHX 8000
NHX 10000
NH 4000
NH 5000
NH 6300
NHC 4000*
NHC 5000*
NHC 5500*
NHC 6300*
NHC 8000*
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
● available
* Only available in selected countries
NHX 4000
Horizontal machining center with highest stability, precision and dynamics
Highlights
Dynamic
- Up to 2,362.2 ipm feed drive and up to 1.2 g acceleration.
- Powerful spindle as standard with 15,000 rpm
- Direct drive table available with 100 rpm
High rigidity
- Thick, high-rigidity bed.
- High rigidity bed due to stepped X-axis guideways.
- Large diameter spindle bearing of 2.8 in
Compact
- Compact horizontal machining center with a footprint of just 120.6 ft²
- Pallet size 15.7 x 15.7 in
- Quick and easy to set up thanks to its three-point support
Precise
- Direct scale feedback with 0.00025 µin resolution
NHX 5000
Horizontal machining center with highest stability, precision and dynamics
Highlights
Dynamic
- Up to 2,362.2 ipm feed drive and up to 1 G acceleration
- Powerful spindle as standard with 15,000 rpm and 81.9/85.6 ft lb
- Direct drive table available with 100 rpm
High rigidity
- Thick, high-rigidity bed.
- High rigidity bed due to stepped X-axis guideways.
- Large diameter spindle bearing of 2.8 in
Compact
- Compact horizontal machining center with a footprint of just 158.2 ft²
- Pallet size 19.7 x 19.7 in
- Quick and easy to set up thanks to its three-point support
Precise
- Direct scale feedback with 0.00025 µin resolution
NHX 5500
Fusing a diverse range of functions with elegant design
Highlights
High speed
- Rapid traverse rate X-, Y- and Z-axes: 2,362.2 ipm
- Max. acceleration: X-, Y- and Z-axes: 0.73 / 0.80 / 0.93 G (23.6 / 25.6 / 29.9 ft/s2)
- Cutting feedrate X-, Y- and Z-axes: 2,362.2 ipm
High rigidity
- Thick, high-rigidity bed
- The 3-point support structure ensures a stable machine installation
- Machining with shorter tools
High-precision equipment
- High-resolution direct scale feedback
- Draw-back function for through spindle coolant
NHX 6300
Fusing a diverse range of functions with elegant design
Highlights
High speed
- Rapid traverse rate X-, Y- and Z-axes: 2,362.2 ipm
- Max. acceleration X-, Y- and Z-axes: 0.64 / 0.93 / 0.70 G (20.7 / 29.9 / 22.6 ft/s2)
- Cutting feedrate X-, Y- and Z-axes: 2,362.2 ipm
High rigidity
- Thick, high-rigidity bed
- The 3-point support structure ensures a stable machine installation
- Machining with shorter tools
High-precision equipment
- High-resolution direct scale feedback
- Draw-back function for through spindle coolant
NHX 8000
Absolute precision machining of large and difficult-to-cut materials
Highlights
High precision
- Driven at the Center of Gravity
- Box-in-Box Construction
High speed
- Max. acceleration X-, Y- and Z-axes: 0.82 / 0.57 / 0.69 G (26.2 / 18.4 / 22.0 ft/s2)
- Rapid traverse rate X-, Y- and Z-axes: 1,968.5 ipm
- Cutting feedrate X-, Y- and Z-axes: 1,968.5 ipm
High cutting performance
- High-output spindle with a max. output of 53.3 HP
- Max. spindle torque: 965.5 ft・lbf <15%ED> (option)
NHX 10000
Expert on machining of large and difficult-to-cut workpieces
Highlights
High precision
- Driven at the Center of Gravity
- Box-in-Box construction
High speed
- Max. acceleration X-, Y- and Z-axes: 0.62 / 0.51 / 0.45 G (20.0 / 16.4 / 14.4 ft/s2)
- Rapid traverse rate X-, Y- and Z-axes: 1,968.5 ipm
- Cutting feedrate X-, Y- and Z-axes: 1,968.5 ipm
Outstanding cutting performance
- Standard spindle with an output of up to 53.3 HP
- Max. spindle torque: 1,042.2 ft・lbf <10%ED> (option)
NH 4000 DCG
Presenting the ideal machining center
Highlights
DCG of original technology
- Longer tool life
- Improved surface quality and roundness
- Outstanding acceleration
Direct Drive Motor of original technology
- The world’s fastest rotary axis drive system,
- which achieves zero backlash.
- High-speed rotation and high-precision indexing
- Less maintenance and longer product life
Space-saving design
- Machine height 106.7 in.
- Machine width×Machine depth 94.4×157.6 in.
- Offering both space-saving design and a large work envelope, reducing the required floor space by 11.1% compared to existing machines.
NH 5000 DCG
Achieving highest-level speed in the world
Highlights
DCG technology
- Longer tool life
- Improved surface quality and roundness
- Outstanding acceleration
Direct Drive Motor technology
- The world’s fastest rotary axis drive system, which achieves zero backlash
- High-speed rotation and high-precision indexing
- Less maintenance and longer product life
Space-saving design
- Machine height 123.5 in. (type 40 type)
- Machine width×Machine depth 107.3×181.5 in. (type 40 type)
- Offering both space-saving design and a large work envelope, reducing the required floor space by 10% (in the case of the NH5000 DCG type 40) compared to existing machines
NH 6300 DCGII
Horizontal machining center covering a wide range of requirements from heavy-duty cutting to high-speed cutting
Highlights
DCG of original technology
- Longer tool life
- Improved surface quality and roundness
- Outstanding acceleration
Direct Drive Motor of original technology
- The world’s fastest rotary axis drive system,
- which achieves zero backlash.
- High-speed rotation and high-precision indexing
- Less maintenance and longer product life
Space-saving design
- Machine height 134.4 in.
- Machine width×Machine depth 132.7×234.5 in.
- Customers can choose a magazine with the ideal number of tools to suit their needs, while keeping the machine width as it is.
INH 80
Precision, productivity and flexibility in compact body
Highlights
Combining High rigidity & High speed for Productivity
- Highly rigid machine structure with twin ball screw & slanted column
- 3-points support
- Thorough cooling measures
powerMASTER Spindle for Oustanding Rigidity
- With a max. torque of 808 N・m as standard and 1,414 N・m as option
- Suitable for heavy-duty and high-speed machining
- High reliability with 3-year warranty
Unique Solutions against Chip, Coolant, Mist Troubles to Advance Process Integration & Automation
- For continuous unmanned operation over long periods
- zero-sludge COOLANT pro - Innovative Vertical Coolant Tank
- Hybrid cleaning method against chip accumulation
Enable mounting large workpiece for 5-axis table
- Workpiece size of ø 1,500 mm × 1,300 mm
- Pallet loading capacity 2,000 kg
INH 63
Precision, productivity and flexibility in compact body
Highlights
Large working area
- X / Y / Z-axis travel: 1,050 / 1,100 / 1,050 mm, 630 × 630 mm pallet size
- Workpieces 5-axis up to ø 1,070 × 1,000 mm / 1,000 kg
(ø 1,070 × 1,300 mm / 1,500 kg for machining without A-axis functionality possible)
36 month warranty with unlimited spindle hours
- powerMASTER spindle with 12,000 rpm, 808 Nm and 85 kW (10 %) as standard. 549Nm (High-Speed) and 1,414Nm (High Torque) available as options.
Highly rigid & dynamic design
- Twin ball screws for X, Y, Z and slanted column
In-Machine Coolant (standard)
- Hybrid cleaning method to avoidchip accumulation
- Fixed outlets on ceiling, sides and spindle nose
- Controlled ceiling nozzles direct the coolant specifically to the areas,where chips can accumulate
- New: 2 frequency-controlled high-efficiency pumps with control valves for the high- and low-pressure range
